大排量车拆装正置前叉及油封示意图
湖南娄底刘永清
随着大排量摩托车使用的普及化，越来越多的车友对自己的车想了解更多，更想去多一些地去解决实际中的一些问题，
正好湖南安化县的小文有此意愿，本想趁其它车更换前减震器油封的机会拍一系列照片予以说明，但天未随人愿，偏偏在这
几天没车来换，所以只好就手头的一点资料，写一篇告诉他了.
０。我们先来看看这种正置前叉的结构略图（如图）
结构图

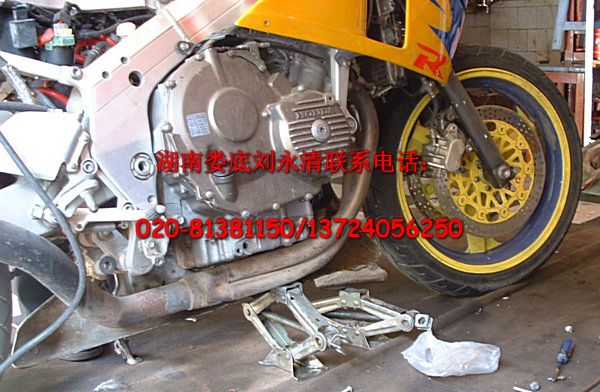

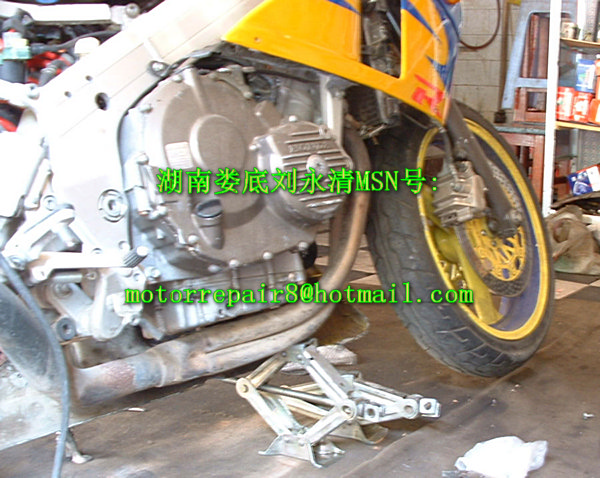

１。先把前轮架起来，我采取的方式是使用千斤顶垫布顶在排气管前端下方（如图
顶排气管位置示意图
千斤顶顶起前轮示意图
3 下面开始工作了。
（一）：拆下前轮
（二）：有两种方法拆开前减震器内部
这个过程的难点就是拆下减震器下面的固定螺丝，因为它很容易让里面的锁紧螺丝一起转动，这样就打不开减震器了，所以我们常有两种方法来拆这颗固定螺丝。（当然你是先不用下面的方法直接能拆下这颗固定螺丝是再好不过了的，拆不下就用下面的方法之一解决问题）

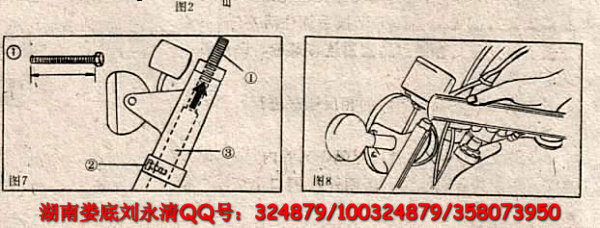

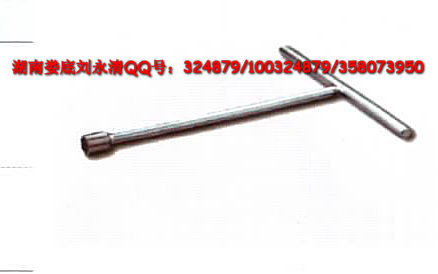

a: 使用图上所示"不好找的 专用加长拆前减震器专用套筒" 从减震器顶部伸入压住里面的锁紧螺丝，然后从下面用内六角板手拆下固定螺丝。(如图）
但我一般不用这种方式，原因就在于这个专用工具不好买，一般是维修店自己作一根，但到了车友手中，因为不常用，所以这事就有点难办了。

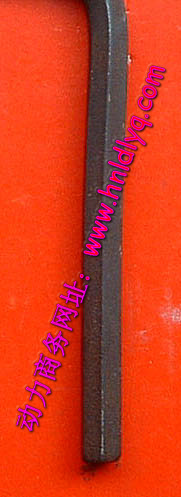

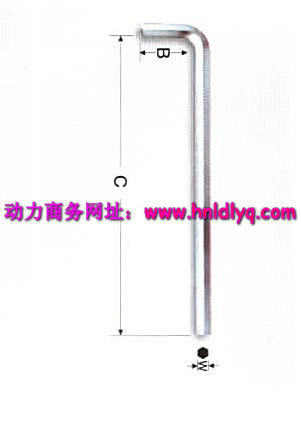

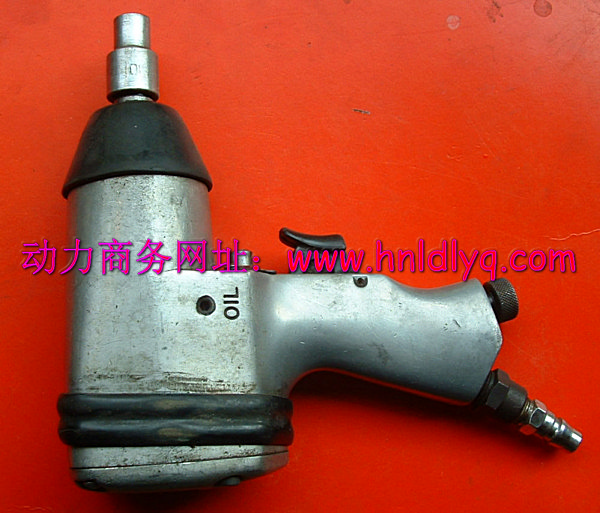

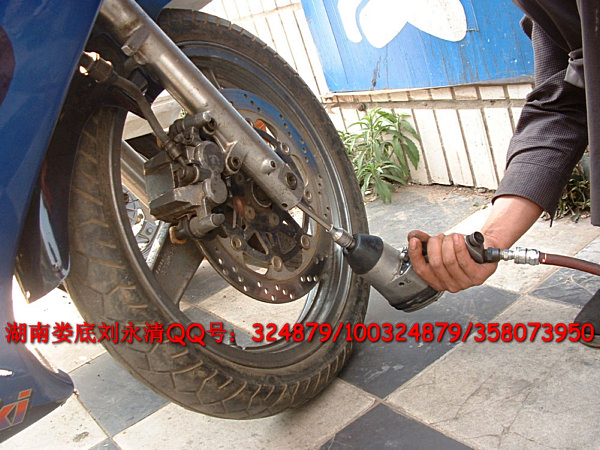

b: 我采用的是第二种方式，即上图所示的"使用气动枪"拆下这颗固定螺丝。即先买来一个拆减震器下面固定螺丝用的内六角板手（几块钱），然后把它的弯头锯掉，套在气动枪上这样也能很容易地拆下这个固定螺丝了。（如上图）

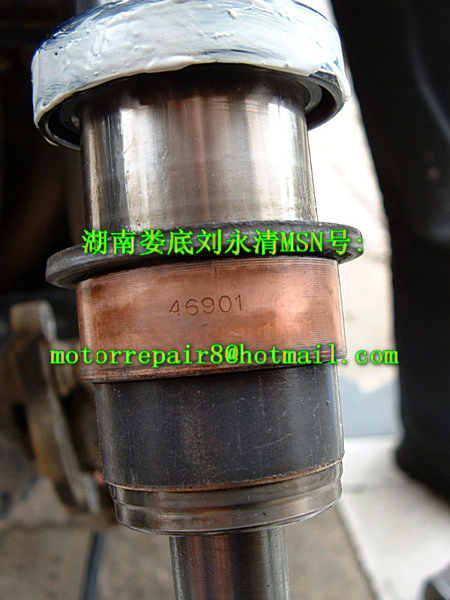

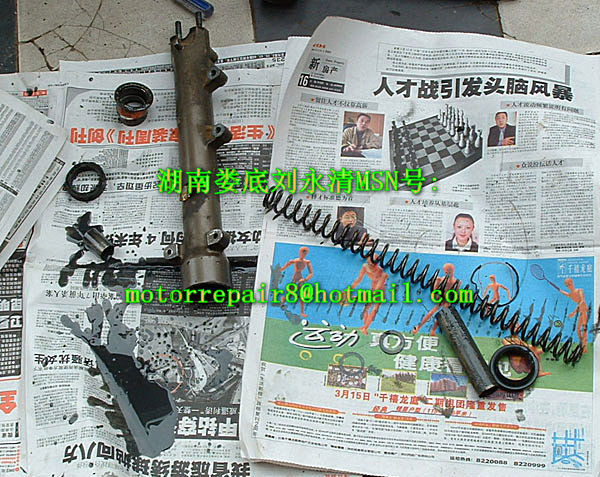

（三）：拆下这个固定螺丝后，减震器就成了这个样子，我们就可以换油封了

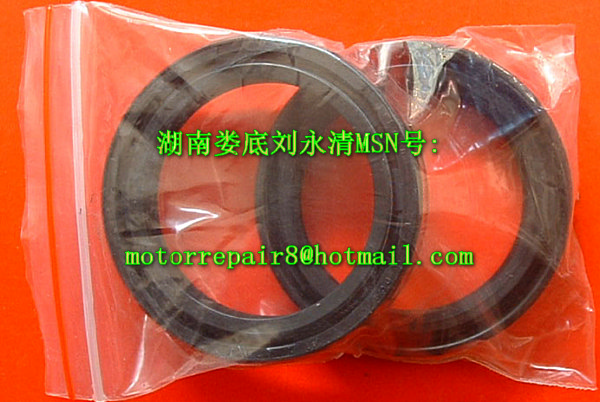

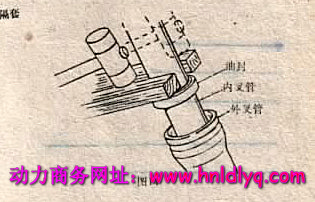

(四）：拆成这个样子，如何取下旧油封和装上新油封我就不多说了，您一看就知道，我这里需要说明的是，在您装新油封时千万不要忘了在新油封外面涂上密封胶，里面要涂上机油，再这样装上去（如图）
(五）:剩下的安装就不用我说了吧，怎么拆下来就怎么装上去了，装好了加入280毫升减震油试车就可以，试车后如果感觉软了就再加一点，直到满意为止。（这就用不着拆下减震器了）。
(五）:剩下的安装就不用我说了吧，怎么拆下来就怎么装上去了，装好了加入280毫升减震油试车就可以，试车后如果感觉软了就再加一点，直到满意为止。（这就用不着拆下减震器了）。
（完毕）
|
各钟前叉油封规格(上) |
| APRILIA |
| Modell |
|
 |
Dim. |
|
Artikelnr |
|
Orig.nr |
|
Kr |
|
|
|
|
| RSV MILLE 1000 |
00- |
|
43x54x9/10,5 |
|
22-143 |
|
|
|
125,00 |
|
|
|
|
| BMW |
| Modell |
|
|
Dim. |
|
Artikelnr |
|
Orig.nr |
|
Kr |
|
|
|
|
| F 650 |
93-05 |
|
41x54x11 |
|
22-123 |
|
31422312838 |
|
189,00 |
|
|
|
|
| K75 |
|
|
41x54x11 |
|
22-123 |
|
31422312838 |
|
189,00 |
|
|
|
|
| R 80R |
|
|
41x54x11 |
|
22-123 |
|
31422312838 |
|
189,00 |
|
|
|
|
| R 100R |
|
|
41x54x11 |
|
22-123 |
|
31422312838 |
|
189,00 |
|
|
|
|
| R 1100GS/RS/RT |
94-03 |
|
35x48x11 |
|
22-103 |
|
31422311988 |
|
89,00 |
|
|
|
|
| DUCATI |
| Modell |
|
|
Dim. |
|
Artikelnr |
|
Orig.nr |
|
Kr |
|
|
|
|
| Monster 600/620 |
00-03 |
|
43x54x9,5/10,5 |
|
22-143 |
|
|
|
125,00 |
|
|
|
|
| Monster 900 |
93-00 |
|
41x54x11 |
|
22-123 |
|
31422312838 |
|
189,00 |
|
|
|
|
| Monster 900 |
01-03 |
|
43x54x9,5/10,5 |
|
22-143 |
|
|
|
125,00 |
|
|
|
|
| 900 SS/SL |
90-93 |
|
41x54x11 |
|
22-123 |
|
31422312838 |
|
189,00 |
|
|
|
|
| 900 SS/SL |
00 |
|
43x54x9,5/10,5 |
|
22-143 |
|
|
|
125,00 |
|
|
|
|
| ST-2/ST-4 |
98-04 |
|
43x54x9,5/10,5 |
|
22-143 |
|
|
|
125,00 |
|
|
|
|
| 916 |
95-96 |
|
43x54x11 |
|
22-122 |
|
|
|
109,00 |
|
|
|
|
| 916 |
97-03 |
|
43x54x9,5/10,5 |
|
22-143 |
|
|
|
125,00 |
|
|
|
|
| HARLEY DAVIDSON |
| Modell |
|
|
Dim. |
|
Artikelnr |
|
Orig.nr |
|
Kr |
|
|
|
|
| SPORTSTER 883/1200 |
86-94 |
|
35x48x11 |
|
22-103 |
|
|
|
89,00 |
|
|
|
|
| SPORTSTER 883/1200 |
95-03 |
|
39x52x11 |
|
22-117 |
|
|
|
125,00 |
|
|
|
|
| 1340 m/35mm I.ben. |
76-03 |
|
35x48x11 |
|
22-103 |
|
|
|
89,00 |
|
|
|
|
| 1340 m/39mm I.ben. |
90-03 |
|
39x52x11 |
|
22-117 |
|
|
|
125,00 |
|
|
|
|
| HONDA |
| Modell |
|
|
Dim. |
|
Artikelnr |
|
Orig.nr |
|
Kr |
|
|
|
|
| CR 80 |
85-86 |
|
34x46x11 |
|
22-101 |
|
51490-GC4-830 |
|
109,00 |
|
|
|
|
| CR 80 |
87-95 |
|
35x48x11 |
|
22-103 |
|
51490-GM7-700 |
|
89,00 |
|
|
|
|
| CR 80 |
96-02 |
|
37x50x11 |
|
22-119 |
|
51490-GBF-831 |
|
109,00 |
|
|
|
|
| CR 85 |
03-04 |
|
37x50x11 |
|
22-119 |
|
51490-GBF-831 |
|
109,00 |
|
|
|
|
| CB 125 |
|
|
31x43x10,5 |
|
22-105 |
|
91255-446-000 |
|
99,00 |
|
|
|
|
| CB 125T |
|
|
31x43x10,5 |
|
22-105 |
|
91255-446-000 |
|
99,00 |
|
|
|
|
| CM 125T |
|
|
31x43x10,5 |
|
22-105 |
|
91255-446-000 |
|
99,00 |
|
|
|
|
| CR 125 |
84-86 |
|
43x55x10 |
|
22-116 |
|
51490-KA3-731 |
|
109,00 |
|
|
|
|
| CR 125 |
87-89 |
|
43x54x9,5/10,5 |
|
22-143 |
|
51490-KS6-305 |
|
125,00 |
|
|
|
|
| CR 125 |
90-91 |
|
45x57x11 |
|
22-128 |
|
51490-KZ3-810 |
|
149,00 |
|
|
|
|
| CR 125 |
92-94 |
|
43x54x11 |
|
22-122 |
|
51490-ML3-305 |
|
109,00 |
|
|
|
|
| CR 125 |
95-96 |
|
43x55x9,5/10 |
|
22-127 |
|
51490-KZ4-305 |
|
125,00 |
|
|
|
|
| CR 125 |
97-04 |
|
46x58x9,5/11 |
|
22-160 |
|
51490-MAC-741 |
|
198,00 |
|
|
|
|
| MBX 125 |
|
|
31x43x10,5 |
|
22-105 |
|
91255-446-000 |
|
99,00 |
|
|
|
|
| MTX 125 |
|
|
35x48x11 |
|
22-103 |
|
91255-434-013 |
|
89,00 |
|
|
|
|
| NS 125 |
|
|
32x42x8/9 |
|
22-109 |
|
|
|
109,00 |
|
|
|
|
| NSR 125 |
|
|
35x47x8x7,5/10 |
|
22-126 |
|
51490-KY4-305 |
|
139,00 |
|
|
|
|
| XL 125S |
|
|
31x43x12,5 |
|
22-107 |
|
91255-331-671 |
|
99,00 |
|
|
|
|
| XL 125V |
01-06 |
|
|
|
22-103 |
|
51490-KE1-305 |
|
89,00 |
|
|
|
|
| CB 250 T |
|
|
33x46x10,5 |
|
22-104 |
|
|
|
89,00 |
|
|
|
|
| CB 250N |
|
|
33x46x10,5 |
|
22-104 |
|
|
|
89,00 |
|
|
|
|
| CR 250 |
78-80 |
|
37x48x12,5/13,5 |
|
22-106 |
|
91255-431-671 |
|
129,00 |
|
|
|
|
| CR 250 |
85-88 |
|
43x54x11 |
|
22-122 |
|
51490-KS6-305 |
|
109,00 |
|
|
|
|
| CR 250 |
89-91 |
|
45x57x11 |
|
22-128 |
|
51490-KZ3-823 |
|
149,00 |
|
|
|
|
| CR 250 |
92-94 |
|
43x54x11 |
|
22-122 |
|
51490-KS6-305 |
|
109,00 |
|
|
|
|
| CR 250 |
95 |
|
43x55x9,5/10 |
|
22-127 |
|
51490-KZ4-305 |
|
125,00 |
|
|
|
|
| CR 250 |
96 |
|
46x58x9,5/11 |
|
22-160 |
|
51490-MAC-741 |
|
198,00 |
|
|
|
|
| CR 250 |
97-04 |
|
47x58x10 |
|
22-142 |
|
51490-KZ3-B01 |
|
169,00 |
|
|
|
|
| CRF 250 |
|
|
47x58x10 |
|
22-142 |
|
|
|
169,00 |
|
|
|
|
| XL 250 |
79-80 |
|
35x48x11 |
|
22-103 |
|
91255-434-013 |
|
89,00 |
|
|
|
|
| XR 250 |
79-80 |
|
35x48x11 |
|
22-103 |
|
91255-434-013 |
|
89,00 |
|
|
|
|
| XR 250 |
81-82 |
|
37x50x11 |
|
22-119 |
|
91255-461-003 |
|
109,00 |
|
|
|
|
| XR 250R |
81-82 |
|
37x50x11 |
|
22-119 |
|
91255-461-003 |
|
109,00 |
|
|
|
|
| XR 250R |
86-03 |
|
41x53x8 |
|
22-129 |
|
51490-KZ1-671 |
|
189,00 |
|
|
|
|
| XL 350 |
79-80 |
|
35x48x11 |
|
22-103 |
|
91255-434-013 |
|
89,00 |
|
|
|
|
| XL 350R |
|
|
39x52x11 |
|
22-117 |
|
91255-463-003 |
|
125,00 |
|
|
|
|
| XL 350R |
|
|
37x50x11 |
|
22-119 |
|
91255-461-003 |
|
109,00 |
|
|
|
|
| CB 400N |
|
|
33x46x10,5 |
|
22-104 |
|
|
|
89,00 |
|
|
|
|
| CB 400T |
|
|
33x46x10,5 |
|
22-104 |
|
|
|
89,00 |
|
|
|
|
| CBX 400F |
82 |
|
35x48x11 |
|
22-103 |
|
91255-434-013 |
|
89,00 |
|
|
|
|
| CM 400T |
|
|
33x46x10,5 |
|
22-104 |
|
|
|
89,00 |
|
|
|
|
| VF 400 |
|
|
35x48x11 |
|
22-103 |
|
91255-434-013 |
|
89,00 |
|
|
|
|
| XL 400R |
|
|
37x50x11 |
|
22-119 |
|
91255-461-003 |
|
109,00 |
|
|
|
|
| XR 400 |
96-03 |
|
43x54x11 |
|
22-122 |
|
51490-KS6-305 |
|
109,00 |
|
|
|
|
| CB 450 |
|
|
35x48x11 |
|
22-103 |
|
91255-434-013 |
|
89,00 |
|
|
|
|
| CRF 450R |
01-04 |
|
47x58x10 |
 |
22-142 |
|
|
|
169,00 |
|
|
|
|
| CB 500E |
94-99 |
|
37x50x11 |
|
22-119 |
|
51490-KAZ-003 |
|
109,00 |
|
|
|
|
| CB 500F |
72-76 |
|
35x48x11 |
|
22-103 |
|
91255-434-013 |
|
89,00 |
|
|
|
|
| CR 500 |
85-88 |
|
43x54x11 |
|
22-122 |
|
51490-KS6-305 |
|
109,00 |
|
|
|
|
| CR 500 |
89-91 |
|
45x57x11 |
|
22-128 |
|
51490-KZ3-823 |
|
149,00 |
|
|
|
|
| CR 500 |
92-94 |
|
43x54x11 |
|
22-122 |
|
51490-KS6-305 |
|
109,00 |
|
|
|
|
| CR 500 |
95 |
|
43x55x9,5/10 |
|
22-127 |
|
51490-KZ4-305 |
|
125,00 |
|
|
|
|
| CR 500 |
96-00 |
|
46x58x9,5/11 |
|
22-160 |
|
51490-MAC-741 |
|
198,00 |
|
|
|
|
| CX 500 |
|
|
33x46x10,5 |
|
22-104 |
|
|
|
89,00 |
|
|
|
|
| CX 500E |
|
|
37x50x11 |
|
22-119 |
|
91255-461-003 |
|
109,00 |
|
|
|
|
| FT 500 |
|
|
37x50x11 |
|
22-119 |
|
91255-461-003 |
|
109,00 |
|
|
|
|
| XL 500R |
|
|
37x50x11 |
|
22-119 |
|
91255-461-003 |
|
109,00 |
|
|
|
|
| XL 500S |
|
|
35x48x11 |
|
22-103 |
|
91255-434-013 |
|
89,00 |
|
|
|
|
| CB 600F Hornet |
98-06 |
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| CBF 600N/NA |
04-06 |
|
|
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| CBR 600F |
87-90 |
|
37x50x11 |
|
22-119 |
|
51490-ML7-305 |
|
109,00 |
|
|
|
|
| CBR 600F |
91-98 |
|
41x54x11 |
|
22-123 |
|
51490-MN8-305/KAE003 |
|
189,00 |
|
|
|
|
| CBR 600F |
99-05 |
|
43x54x11 |
|
22-122 |
|
51490-MZ1-305 |
|
109,00 |
|
|
|
|
| CBR 600FS |
99- |
|
43x54x11 |
|
22-122 |
|
51490-MZ1-305 |
|
109,00 |
|
|
|
|
| CBR 600FX |
99-05 |
|
43x54x11 |
|
22-122 |
|
51490-MZ1-305 |
|
109,00 |
|
|
|
|
| CBX 600 |
|
|
39x52x11 |
|
22-117 |
|
91255-463-003 |
|
125,00 |
|
|
|
|
| VT 600C Shadow |
|
|
39x51x8 |
|
22-130 |
|
51490-MR1-671 |
|
125,00 |
|
|
|
|
| XL 600R |
|
|
39x52x11 |
|
22-117 |
|
91255-463-003 |
|
125,00 |
|
|
|
|
| XL 600V Transalp |
|
|
41x54x11 |
|
22-123 |
|
51490-KF0-305/KAE-003 |
|
189,00 |
|
|
|
|
| XR 600R |
85-99 |
|
43x54x11 |
|
22-122 |
|
51490-KA4-831 |
|
109,00 |
|
|
|
|
| CB 650 |
|
|
35x48x11 |
|
22-103 |
|
91255-463-003 |
|
89,00 |
|
|
|
|
| CB 650C |
|
|
35x48x11 |
|
22-103 |
|
91255-463-003 |
|
89,00 |
|
|
|
|
| CB 650SC |
82 |
|
37x50x11 |
|
22-119 |
|
51490-ML7-305 |
|
109,00 |
|
|
|
|
| FX 650 Vigor |
99 |
|
41x54x11 |
|
22-123 |
|
51490-MAK-F00 |
|
189,00 |
|
|
|
|
| NTV 650 Deauville |
99-00 |
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| NTV 650 Revere |
|
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| NX 650 Dominator |
88-03 |
|
41x54x11 |
|
22-123 |
|
51490--KF0-305/KAE-003 |
|
189,00 |
|
|
|
|
| SLR 650 |
97 |
|
41x54x11 |
|
22-123 |
|
51490-KAE-003 |
|
189,00 |
|
|
|
|
| XL 650V Transalp |
00-06 |
|
41x54x11 |
|
22-123 |
|
51490-KAE-003 |
|
189,00 |
|
|
|
|
| XR 650R |
99-06 |
|
46x58x10,5 |
|
22-139 |
|
|
|
169,00 |
|
|
|
|
| XRV 650 Africa Twin |
|
|
43x54x11 |
|
22-122 |
|
51490-KA4-831 |
|
109,00 |
|
|
|
|
| CB 750 K1-K6 |
71-77 |
|
35x48x11 |
|
22-103 |
|
91255-434-013 |
|
89,00 |
|
|
|
|
| CB 750 K7 |
71-78 |
|
35x48x11 |
|
22-103 |
|
91255-434-013 |
|
89,00 |
|
|
|
|
| CB 750C |
82 |
|
35x48x11 |
|
22-103 |
|
91255-434-013 |
|
89,00 |
|
|
|
|
| CB 750F |
79-83 |
|
35x48x11 |
|
22-103 |
|
91255-434-013 |
|
89,00 |
|
|
|
|
| CB 750F2 |
--78 |
|
35x48x11 |
|
22-103 |
|
91255-434-013 |
|
89,00 |
|
|
|
|
| CB 750F2 Seven Fifty |
|
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| CB 750K |
79 |
|
35x48x11 |
|
22-103 |
|
91255-434-013 |
|
89,00 |
|
|
|
|
| CBX 750 |
84-86 |
|
39x52x11 |
|
22-117 |
|
91255-463-003 |
|
125,00 |
|
|
|
|
| VF 750C |
--84 |
|
37x50x11 |
|
22-119 |
|
51490-ML7-305 |
|
109,00 |
|
|
|
|
| VF 750C |
95-- |
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| VF 750F |
|
|
39x52x11 |
|
22-117 |
|
91255-463-003 |
|
125,00 |
|
|
|
|
| VF 750S |
--84 |
|
37x50x11 |
|
22-119 |
|
51490-ML7-305 |
|
109,00 |
|
|
|
|
| VFR 750F |
86-87 |
|
37x50x11 |
|
22-119 |
|
51490-ML7-305 |
|
109,00 |
|
|
|
|
| VFR 750F |
88-97 |
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| VT 750CA |
05-06 |
|
|
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| VT 750 DC Black Widow |
01-03 |
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| VT 750C |
05-06 |
|
|
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| VT 750C2 |
97-00 |
|
41x53x8 |
|
22-129 |
|
51490-MBA-003 |
|
189,00 |
|
|
|
|
| XLV 750R |
|
|
43x54x11 |
|
22-122 |
|
51490-KA4-831 |
|
109,00 |
|
|
|
|
| XLV 750R |
|
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| XRV 750 Africa Twin |
90-03 |
|
43x54x11 |
|
22-122 |
|
51490-KA4-831 |
|
109,00 |
|
|
|
|
| VFR 800 |
02-06 |
|
|
|
22-122 |
|
51490-MR7-305 |
|
109,00 |
|
|
|
|
| VFR 800 FI |
98-01 |
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| CB 900 |
79-80 |
|
35x48x11 |
|
22-103 |
|
91255-434-013 |
|
89,00 |
|
|
|
|
| CB 900 |
81 |
|
37x50x11 |
|
22-119 |
|
91255-461-003 |
|
109,00 |
|
|
|
|
| CB 900 |
82-83 |
|
39x52x11 |
|
22-117 |
|
91255-463-003 |
|
125,00 |
|
|
|
|
| CB 900 Hornet |
02- |
|
43x54x11 |
|
22-122 |
|
51490-MCF-000 |
|
109,00 |
|
|
|
|
| CBR 900RR |
00-03 |
|
43x54x11 |
|
22-122 |
|
51490-MCF-000 |
|
109,00 |
|
|
|
|
| CBR 900RR Fireblade |
92-99 |
|
45x57x11 |
|
22-128 |
|
51490-MWO-003 |
|
149,00 |
|
|
|
|
| CB 1000 Big |
|
|
43x54x11 |
|
22-122 |
|
51490-MZ1-305 |
|
109,00 |
|
|
|
|
| CBR 1000F |
|
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| CBX 1000 |
--80 |
|
35x48x11 |
|
22-103 |
|
91255-434-013 |
|
89,00 |
|
|
|
|
| CBX 1000 |
81-82 |
|
39x52x11 |
|
22-117 |
|
91255-463-003 |
|
125,00 |
|
|
|
|
| GL 1000 |
|
|
37x48x12,5/13,5 |
|
22-106 |
|
91255-431-671 |
|
129,00 |
|
|
|
|
| GL 1000K3 |
|
|
37x48x12,5/13,5 |
|
22-106 |
|
91255-431-671 |
|
129,, 00 |
|
|
|
|
| VF 1000F |
|
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| VF 1000R |
|
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| VTR 1000 |
02- |
|
43x54x11 |
|
22-122 |
|
51490-MCF-000 |
|
109,00 |
|
|
|
|
| VTR 1000F |
97-03 |
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| VTR 1000SP1 |
00-03 |
|
43x54x11 |
|
22-122 |
|
51490-MCF-000 |
|
109,00 |
|
|
|
|
| VTR 1000SP2 |
02- |
|
43x54x11 |
|
22-122 |
|
51490-MCF-000 |
|
109,00 |
|
|
|
|
| XL 1000V Varadero |
99-02 |
|
43x54x11 |
|
22-122 |
|
51490-MZ1-305 |
|
109,00 |
|
|
|
|
| CB 1100F |
|
|
39x52x11 |
|
22-117 |
|
91255-463-003 |
|
125,00 |
|
|
|
|
| CB 1100R |
82-83 |
|
39x52x11 |
|
22-117 |
|
91255-463-003 |
|
125,00 |
|
|
|
|
| CBR 1100XX |
99-06 |
|
43x54x11 |
|
22-122 |
|
51490-MZ1-305 |
|
109,00 |
|
|
|
|
| GL 1100 |
80-82 |
|
39x52x11 |
|
22-117 |
|
91255-463-003 |
|
125,00 |
|
|
|
|
| ST 1100 ABS |
|
|
43x54x11 |
|
22-122 |
|
51490-MZ1-305 |
|
109,00 |
|
|
|
|
| ST 1100 ej ABS |
|
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| VF 1100C |
|
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| VT 1100 C |
|
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| VT 1100 C3 |
98-00 |
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| VT 1100C |
|
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| VT 1100C2 |
95-99 |
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| X 11 |
01-03 |
|
39x52x11 |
|
22-122 |
|
51490-MZ1-305 |
|
109,00 |
|
|
|
|
| GL 1200 |
|
|
41x54x11 |
|
22-123 |
|
51490-MB4-315 |
|
189,00 |
|
|
|
|
| F6C |
97-03 |
|
45x57x11 |
|
22-128 |
|
51490-MWO-003 |
|
149,00 |
|
|
|
|
| STX 1300 |
02- |
|
45x57x11 |
|
22-128 |
|
51490-MWO-003 |
|
149,00 |
|
|
|
|
| VTX 1300 |
03-04 |
|
|
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| VTX 1300C |
04 |
|
|
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| VTX 1300S |
03-06 |
|
|
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| GL 1500 |
88-03 |
|
41x54x11 |
|
22-123 |
|
51490-MN8-305 |
|
189,00 |
|
|
|
|
| GL 1800 |
01-06 |
|
45x57x11 |
|
22-128 |
|
51490-MWO-003 |
|
149,00 |
|
|
|
|
| VTX 1800 |
02-04 |
|
45x57x11 |
|
22-128 |
|
51490-MWO-003 |
|
149,00 |
|
| |
|
各钟前叉油封规格(中) |
| KAWASAKI |
| Modell |
|
|
Dim. |
|
Artikelnr |
|
Orig.nr |
|
Kr |
|
|
|
|
| KX 60 |
83-03 |
|
30x42x10,5 |
|
22-110 |
|
|
|
99,00 |
|
|
|
|
| KX 65 |
01-04 |
|
33x46x11 |
|
22-145 |
|
|
|
109,00 |
|
|
|
|
| KX 80 |
84-85 |
|
33x45x10 |
|
22-131 |
|
92049-1179 |
|
179,00 |
|
|
|
|
| KX 80 |
86-91 |
|
35x48x11 |
|
22-103 |
|
92049-1252/1350 |
|
89,00 |
|
|
|
|
| KX 80 |
92-97 |
|
38x50x10 |
|
22-114 |
|
92049-1180 |
|
99,00 |
|
|
|
|
| KX 85 |
98-01 |
|
36x48x9 |
|
22-120 |
|
92049-1394 |
|
115,00 |
|
|
|
|
| KX 85 |
01-04 |
|
36x48x9 |
|
22-120 |
|
92049-1394 |
|
115,00 |
|
|
|
|
| AR 125 |
|
|
30x42x10,5 |
|
22-110 |
|
|
|
99,00 |
|
|
|
|
| KDX 125R |
|
|
35x48x11 |
|
22-103 |
|
92049-1368 |
|
89,00 |
|
|
|
|
| KH 125 |
81 |
|
27x39x10,5 |
|
22-108 |
|
44009-017 |
|
89,00 |
|
|
|
|
| KMX 125 |
|
|
35x48x11 |
|
22-103 |
|
92049-1268 |
|
89,00 |
|
|
|
|
| KX 125 |
85-88 |
|
43x55x10 |
|
22-116 |
|
92049-1104/1316 |
|
109,00 |
|
|
|
|
| KX 125 |
89-90 |
|
41x53x8 |
|
22-129 |
|
92049-1338/1256 |
|
189,00 |
|
|
|
|
| KX 125 |
91-95 |
|
43x55x9,5/10 |
|
22-127 |
|
92049-1373 |
|
125,00 |
|
|
|
|
| KX 125 |
96-01 |
|
46x58x9,5/11 |
|
22-160 |
|
92049-1440 |
|
198,00 |
|
|
|
|
| KX 125 |
02-04 |
|
48x58,2x8,5/10,5 |
|
22-146 |
|
92049-1599 |
|
159,00 |
|
|
|
|
| KDX 200SR |
|
|
43x55x10 |
|
22-116 |
|
92049-1316 |
|
109,00 |
|
|
|
|
| KDX 220 |
97-03 |
|
43x55x9,5/10,5 |
|
22-127 |
|
|
|
125,00 |
|
|
|
|
| Z 200 |
|
|
32x43x12,5 |
|
22-113 |
|
|
|
99,00 |
|
|
|
|
| Z 200A |
|
|
32x43x12,5 |
|
22-113 |
|
44009-028 |
|
99,00 |
|
|
|
|
| Estrella 250 |
96 |
|
39x52x11 |
|
22-117 |
|
92049-1391 |
|
125,00 |
|
|
|
|
| KX 250 |
85-88 |
|
43x55x10 |
|
22-116 |
|
92049-1104/1316 |
|
109,00 |
|
|
|
|
| KX 250 |
89-90 |
|
41x53x8 |
|
22-129 |
|
92049-1256/1338 |
|
189,00 |
|
|
|
|
| KX 250 |
91-95 |
|
43x55x9,5/10 |
|
22-127 |
|
92049-1373 |
|
125,00 |
|
|
|
|
| KX 250 |
96-01 |
|
46x58x9,5/11 |
|
22-160 |
|
|
|
198,00 |
|
|
|
|
| KX 250 |
02-04 |
|
48x58,2x8,5/10,5 |
|
22-146 |
|
92049-1599 |
|
159,00 |
|
|
|
|
| KX 250F |
04 |
|
48x58,2x8,5/10,5 |
|
22-146 |
|
|
|
159,00 |
|
|
|
|
| Z 250C |
|
|
32x43x12,5 |
|
22-113 |
|
44009-028 |
|
99,00 |
|
|
|
|
| Z 250LTD |
|
|
32x43x12,5 |
|
22-113 |
|
44009-028 |
|
99,00 |
|
|
|
|
| KLX 300 |
97 |
|
43x55x9,5/10 |
|
22-127 |
|
92049-1373 |
|
125,00 |
|
|
|
|
| GPZ 400S |
|
|
35x48x11 |
|
22-103 |
|
92049-1226 |
|
89,00 |
|
|
|
|
| Z 400 |
|
|
33x46x10,5 |
|
22-104 |
|
|
|
89,00 |
|
|
|
|
| Z 400J |
|
|
36x48x10,5 |
|
22-100 |
|
44009-024 |
|
109,00 |
|
|
|
|
| EN 500 |
|
|
35x48x11 |
|
22-103 |
|
92049-1226 |
|
89,00 |
|
|
 |
|
| EN 500 |
94-95 |
|
37x50x11 |
|
22-119 |
|
92049-1421 |
|
109,00 |
|
|
|
|
| EN 500 |
96 |
|
41x53x8 |
|
22-129 |
|
92049-1356 |
|
189,00 |
|
|
|
|
| ER-5 |
97-03 |
|
37x50x11 |
|
22-119 |
|
92049-1421 |
|
109,00 |
|
|
|
|
| GPZ 500S |
|
|
35x48x11 |
|
22-103 |
|
|
|
89,00 |
|
|
|
|
| GPZ 500S |
94-03 |
|
37x50x11 |
|
22-119 |
|
92049-1421 |
|
109,00 |
|
|
|
|
| KLE 500 |
95-03 |
|
41x53x8/9,5 |
|
22-125 |
|
92049-1389 |
|
115,00 |
|
|
|
|
| KX 500 |
85-88 |
|
43x55x10 |
|
22-116 |
|
92049-1104/1316 |
|
109,00 |
|
|
|
|
| KX 500 |
89-90 |
|
41x53x8 |
|
22-129 |
|
92049-1338/1356 |
|
189,00 |
|
|
|
|
| KX 500 |
91-95 |
|
43x55x9,5/10 |
|
22-127 |
|
|
|
125,00 |
|
|
|
|
| KX 500 |
96-01 |
|
46x58x9,5/11 |
|
22-160 |
|
|
|
198,00 |
|
|
|
|
| Z 500 |
|
|
36x48x10,5 |
|
22-100 |
|
44009-024 |
|
109,00 |
|
|
|
|
| Z 550F |
|
|
35x48x11 |
|
22-103 |
|
|
|
89,00 |
|
|
|
|
| Z 550GT |
|
|
36x48x9 |
|
22-120 |
|
92049-1101 |
|
115,00 |
|
|
|
|
| ZR 550 Zephyr |
95 |
|
39x51x8 |
|
22-130 |
|
92049-1343 |
|
125,00 |
|
|
|
|
| GPX 600R |
--89 |
|
38x50x10 |
|
22-114 |
|
92049-1178 |
|
99,00 |
|
|
|
|
| GPZ 600R |
85-87 |
|
37x49/49,4x8/9,5 |
|
22-112 |
|
|
|
115,00 |
|
|
|
|
| ZL 600 Eliminator |
95 |
|
37x49/49,4x8/9,5 |
|
22-112 |
|
92049-1435 |
|
115,00 |
|
|
|
|
| ZX-6R |
95-97 |
|
41x53x8 |
|
22-129 |
|
92049-1356 |
|
189,00 |
|
|
|
|
| ZX-6R |
98-02 |
|
46x58x10,5 |
|
22-139 |
|
92049-1495/1508 |
|
169,00 |
|
|
|
|
| ZX-6R (636) |
03-04 |
|
41x53x8/10,5 |
|
22-140 |
|
|
|
125,00 |
|
|
|
|
| ZZR 600 |
90-06 |
|
41x54x11 |
|
22-123 |
|
92049-1363 |
|
189,00 |
|
|
|
|
| KLR 650 |
95-03 |
|
41x53x8/9,5 |
|
22-125 |
|
92049-1389 |
|
115,00 |
|
|
|
|
| Z 650 |
|
|
36x48x10,5 |
|
22-100 |
|
44009-024 |
|
109,00 |
|
|
|
|
| ZR-7/S |
00-03 |
|
43x55x9,5/10 |
|
22-127 |
|
|
|
125,00 |
|
|
|
|
| GPX 750R |
|
|
38x50x10 |
|
22-114 |
|
92049-1178 |
|
99,00 |
|
|
|
|
| GPZ 750 |
82 |
|
36x48x9 |
|
22-120 |
|
|
|
115,00 |
|
|
|
|
| GPZ 750R |
83-84 |
|
38x50x10 |
|
22-114 |
|
92049-1102 |
|
99,00 |
|
|
|
|
| VN 750 |
|
|
38x52x11 |
|
22-133 |
|
92049-1230 |
|
149,00 |
|
|
|
|
| Z 750 |
|
|
37x49/49,4x8/9,5 |
|
22-112 |
|
|
|
115,00 |
|
|
|
|
| Z 750 |
--82 |
|
36x48x9 |
|
22-120 |
|
|
|
115,00 |
|
|
|
|
| Z 750 Turbo |
|
|
37x49/49,4x8/9,5 |
|
22-112 |
|
|
|
115,00 |
|
|
|
|
| Z 750A |
|
|
36x48x10,5 |
|
22-100 |
|
44009-024 |
|
109,00 |
|
|
|
|
| Z 750B |
|
|
36x48x10,5 |
|
22-100 |
|
44009-024 |
|
109,00 |
|
|
|
|
| Z 750L4 |
--82 |
|
36x48x9 |
|
22-120 |
|
|
|
115,00 |
|
|
|
|
| Z 750/S |
04- |
|
|
|
22-127 |
|
92049-1494 |
|
125,00 |
|
|
|
|
| ZR 750 Zephyr |
|
|
41x53x8 |
|
22-129 |
|
92049-1356 |
|
189,00 |
|
|
|
|
| ZR-7 |
99-- |
|
43x55x9,5/10 |
|
22-127 |
|
92049-1456 |
|
125,00 |
|
|
|
|
| ZX-7R |
96-03 |
|
43x55x9,5/10 |
|
22-127 |
|
92049-1456 |
|
125,00 |
|
|
|
|
| ZXR 750 |
89-92 |
|
43x55x9,5/10 |
|
22-127 |
|
92049-1392 |
|
125,00 |
|
|
|
|
| ZXR 750 |
93 |
|
41x53x8/9,5 |
|
22-125 |
|
92049-1347 |
|
115,00 |
|
|
|
|
| VN 800 |
95-99 |
|
41x54x11 |
|
22-123 |
|
92049-1363 |
|
189,00 |
|
|
|
|
| VN 800 Classic |
96-06 |
|
41x54x11 |
|
22-123 |
|
92049-1363 |
|
189,00 |
|
|
|
|
| VN 800 Drifter |
99-06 |
|
41x54x11 |
|
22-123 |
|
92049-1363 |
|
189,00 |
|
|
|
|
| GPZ 900R |
84-89 |
|
41x53x8/9,5 |
|
22-125 |
|
92049-1273 |
|
115,00 |
|
|
|
|
| Z 900 |
76-77 |
|
36x48x10,5 |
|
22-100 |
|
44009-024 |
|
109,00 |
|
|
|
|
| Z900 |
73-75 |
|
35x48x11 |
|
22-103 |
|
|
|
89,00 |
|
|
|
|
| ZX-9R |
94-97 |
|
41x53x8 |
|
22-129 |
|
92049-1356 |
|
189,00 |
|
|
|
|
| ZX-9R |
98-03 |
|
46x58x10,5 |
|
22-139 |
|
92049-1508 |
|
169,00 |
|
|
|
|
| 1000 GTR |
|
|
40x52x9,5 |
|
22-115 |
|
92049-1102 |
|
115,00 |
|
|
|
|
| GPZ 1000RX |
|
|
40x52x9,5 |
|
22-115 |
|
92049-1102 |
|
115,00 |
|
|
|
|
| KLV 1000 |
05- |
|
|
|
22-127 |
|
92049-5070 |
|
125,00 |
|
|
|
|
| Z 1000 |
|
|
36x48x10,5 |
|
22-100 |
|
44009-024 |
|
109,00 |
|
|
|
|
| Z 1000 |
81-82 |
|
38x50x10 |
|
22-114 |
|
92049-1102 |
|
99,00 |
|
|
|
|
| Z 1000GTR |
|
|
41x53x8/9,5 |
|
22-125 |
|
92049-1273 |
|
115,00 |
|
|
|
|
| Z 1000J |
81-83 |
|
38x50x10 |
|
22-114 |
|
92049-1102 |
|
99,00 |
|
|
|
|
| Z 1000LTD |
|
|
40x52x9,5 |
|
22-115 |
|
92049-1102 |
|
115,00 |
|
|
|
|
| Z 1000R |
--84 |
|
38x50x10 |
|
22-114 |
|
|
|
99,00 |
|
|
|
|
| ZX 10 |
|
|
41x53x8/9,5 |
|
22-125 |
|
92049-1273 |
|
115,00 |
|
|
|
|
| ZX-10R |
04-05 |
|
43x55x9,5/10 |
|
22-127 |
|
92049-1522 |
|
125,00 |
|
|
|
|
| GPZ 1100 |
83-84 |
|
37x49/49,4x8/9,5 |
|
22-112 |
|
|
|
115,00 |
|
|
|
|
| GPZ 1100 |
95 |
|
41x53x8 |
|
22-129 |
|
92049-1356 |
|
189,00 |
|
|
|
|
| GPZ 1100 |
96-99 |
|
|
|
22-125 |
|
|
|
115,00 |
|
|
|
|
| Z 1000ST |
|
|
40x52x9,5 |
|
22-115 |
|
92049-1102 |
|
115,00 |
|
|
|
|
| Z 1100 |
81-82 |
|
38x50x10 |
|
22-114 |
|
92049-1178 |
|
99,00 |
|
|
|
|
| Z 1100 Spectre |
|
|
38x50x10 |
|
22-114 |
|
|
|
99,00 |
|
|
|
|
| Z 1100A |
81-83 |
|
38x50x10 |
|
22-114 |
|
92049-1178 |
|
99,00 |
|
|
|
|
| ZEPHYR 1100 |
|
|
43x55x9,5/10 |
|
22-127 |
|
92049-1392 |
|
125,00 |
|
|
|
|
| ZR 1100 Zephyr |
92-94 |
|
43x55x9,5/10 |
|
22-127 |
|
92049-1392 |
|
125,00 |
|
|
|
|
| ZRX 1100 |
97-98 |
|
43x55x9,5/10 |
|
22-127 |
|
92049-1456 |
|
125,00 |
|
|
|
|
| ZZR 1100 |
|
|
43x55x9,5/10 |
|
22-127 |
|
92049-1392 |
|
125,00 |
|
|
|
|
| ZRX 1200 |
99-04 |
|
|
|
22-127 |
|
, |
|
125,00 |
|
|
|
|
| ZX 1300 |
79-86 |
|
41x53x8/9,5 |
|
22-125 |
|
92049-1043 |
|
115,00 |
|
|
|
|
| VN 1500 |
|
|
41x54x11 |
|
22-123 |
|
92049-1272 |
|
189,00 |
|
|
|
|
| VN 1500 Classic |
95-- |
|
41x54x11 |
|
22-123 |
|
92049-1363 |
|
189,00 |
|
|
|
|
| VN 1500 Drifter |
99-01 |
|
41x54x11 |
|
22-123 |
|
|
|
189,00 |
|
|
|
|
| VN1600 |
06 |
|
|
|
22-127 |
|
92049-5070 |
|
125,00 |
|
|
|
|
| KAYABA |
| Modell |
|
|
Dim. |
|
Artikelnr |
|
Orig.nr |
|
Kr |
|
|
|
|
| 41 mm |
|
|
41x53x8 |
|
22-129 |
|
|
|
189,00 |
|
|
|
|
| 43 mm |
|
|
43x55x9,5/10 |
|
22-127 |
|
|
|
125,00 |
|
|
|
|
| 46 mm |
|
|
46x58x9,5/11 |
|
22-160 |
|
|
|
198,00 |
|
|
|
|
| 48 mm |
|
|
48x58,2x8,5/10,5 |
|
22-146 |
|
|
|
159,00 |
|
|
|
|
| SHOWA |
| Modell |
|
|
Dim. |
|
Artikelnr |
|
Orig.nr |
|
Kr |
|
|
|
|
| 43 mm |
|
|
43x54x11 |
|
22-122 |
|
|
|
109,00 |
|
|
|
|
| 45 mm |
|
|
45x57x11 |
|
22-128 |
|
|
|
149,00 |
|
|
|
|
| 47 mm |
|
|
47x58x10 |
|
22-161 |
|
|
|
100,00 |
|
|
|
|
| 49 mm |
|
|
49x60x10 |
|
22-163 |
|
|
|
169,00 |
|
|
|
|
| SUZUKI |
| Modell |
|
|
Dim. |
|
Artikelnr |
|
Orig.nr |
|
Kr |
|
|
|
|
| RM 80 |
89-00 |
|
35x48x11 |
|
22-103 |
|
51153-34A00/10D10 |
|
89,00 |
|
|
|
|
| RM 85 |
01-04 |
|
48,5x60x10 |
|
22-119 |
|
51153-03B30 |
|
109,00 |
|
|
|
|
| GP 125 |
|
|
27x39x10,5 |
|
22-108 |
|
51153-39140 |
|
89,00 |
|
|
|
|
| GT 125 |
|
|
30x40,5x12 |
|
22-121 |
|
51153-36A00 |
|
89,00 |
|
|
|
|
| RG 125 |
86-91 |
|
30x40,5x12 |
|
22-121 |
|
51153-36A00 |
|
89,00 |
|
|
|
|
| RG 125 |
92-93 |
|
39x52x11 |
|
22-117 |
|
|
|
125,00 |
|
|
|
|
| RM 125 |
84-88 |
|
43x55x10 |
|
22-116 |
|
51153-14330 |
|
109,00 |
|
|
|
|
| RM 125 |
89-90 |
|
41x53x8 |
|
22-129 |
|
51153-27C20 |
|
189,00 |
|
|
|
|
| RM 125 |
91-95 |
|
45x57x11 |
|
22-128 |
|
51153-27C40/41/43D00 |
|
149,00 |
|
|
|
|
| RM 125 |
96-00 |
|
49x60x10 |
|
22-163 |
|
51153-36E00 |
|
169,00 |
|
|
|
|
| RM 125 |
01-04 |
|
48,5x60x10 |
|
22-163 |
|
51153-03B30 |
|
169,00 |
|
|
|
|
| TS 125ER |
|
|
32x43x12,5 |
|
22-113 |
|
51153-48500 |
|
99,00 |
|
|
|
|
| TS 125X |
|
|
35x48x11 |
|
22-103 |
|
51153-34200/20520 |
|
89,00 |
|
|
|
|
| AN 250 Burgman |
98-05 |
|
41x53x8710,5 |
|
22-140 |
|
51153-14F00 |
|
125,00 |
|
|
|
|
| GSX 250 |
|
|
33x46x10,5 |
|
22-104 |
|
51153-44031 |
|
89,00 |
|
|
|
|
| RGV 250 |
91-98 |
|
41x54x11 |
|
22-123 |
|
|
|
189,00 |
|
|
|
|
| RM 250 |
84-88 |
|
43x55x10 |
|
22-116 |
|
51153-14330 |
|
109,00 |
|
|
|
|
| RM 250 |
89-90 |
|
41x53x8 |
|
22-129 |
|
5, 1153-27C00/27C20 |
|
189,00 |
|
|
|
|
| RM 250 |
91-95 |
|
45x57x11 |
|
22-128 |
|
51153-27C40/43D00 |
|
149,00 |
|
|
|
|
| RM 250 |
96-00 |
|
49x60x10 |
|
22-163 |
|
51153-36E00 |
|
169,00 |
|
|
|
|
| RM 250 |
01-04 |
|
48,5x60x10 |
|
22-163 |
|
51153-37F00 |
|
169,00 |
|
|
|
|
| RM-Z 250 |
04 |
|
43x55x9,5/10,5 |
|
22-163 |
|
51153-37F00 |
|
169,00 |
|
|
|
|
| RMX 250 |
--91 |
|
41x53x8/9,5 |
|
22-125 |
|
51153-28C00 |
|
115,00 |
|
|
|
|
| RMX 250 |
92-- |
|
45x57x11 |
|
22-128 |
|
|
|
149,00 |
|
|
|
|
| DR 350 |
|
|
43x54x11 |
|
22-122 |
|
51153-14D00 |
|
109,00 |
|
|
|
|
| DR 350S |
|
|
43x54x11 |
|
22-122 |
|
51153-14D00 |
|
109,00 |
|
|
|
|
| SP 370 |
|
|
36x48x10,5 |
|
22-100 |
|
51153-41211 |
|
109,00 |
|
|
|
|
| GT 380 |
|
|
33x46x10,5 |
|
22-104 |
|
51153-33030 |
|
89,00 |
|
|
|
|
| AN 400 Burgman |
98-02 |
|
41x53x8/10,5 |
|
22-140 |
|
|
|
125,00 |
|
|
|
|
| DR 400 |
|
|
36x48x10,5 |
|
22-100 |
|
51153-41211 |
|
109,00 |
|
|
|
|
| DR 400Z |
00-03 |
|
49x60x10 |
|
22-163 |
|
51153-36E00 |
|
169,00 |
|
|
|
|
| GSX 400E |
|
|
33x46x10,5 |
|
22-104 |
|
51153-44031 |
|
89,00 |
|
|
|
|
| GSX 400F |
|
|
33x46x10,5 |
|
22-104 |
|
51153-44031 |
|
89,00 |
|
|
|
|
| GSX 400FWS |
83-85 |
|
36x48x9 |
|
22-120 |
|
|
|
115,00 |
|
|
|
|
| GSX 400S |
|
|
33x46x10,5 |
|
22-104 |
|
51153-44031 |
|
89,00 |
|
|
|
|
| GSX 400T |
|
|
33x46x10,5 |
|
22-104 |
|
51153-44031 |
|
89,00 |
|
|
|
|
| SP 400 |
|
|
36x48x10,5 |
|
22-100 |
|
51153-41211 |
|
109,00 |
|
|
|
|
| GS 450 |
|
|
33x46x10,5 |
|
22-104 |
|
51153-44031 |
|
89,00 |
|
|
|
|
| DR 500 |
|
|
36x48x10,5 |
|
22-100 |
|
51153-41211 |
|
109,00 |
|
|
|
|
| GS 500 |
--80 |
|
35x48x13/14,5 |
|
22-102 |
|
51153-34730 |
|
129,00 |
|
|
|
|
| GS 500 |
--81 |
|
35x48x11 |
|
22-103 |
|
51153-34200 |
|
89,00 |
|
|
|
|
| GS 500E |
94 |
|
37x49/49,4x8/9,5 |
|
22-112 |
|
51153-01D00 |
|
115,00 |
|
|
|
|
| GS 550 |
--82 |
|
35x48x11 |
|
22-103 |
|
51153-34200 |
|
89,00 |
|
|
|
|
| GSX 550 |
84 |
|
37x49/49,4x8/9,5 |
|
22-112 |
|
51153-49000 |
|
115,00 |
|
|
|
|
| GT 550 |
|
|
35x48x13/14,5 |
|
22-102 |
|
51153-34730 |
|
129,00 |
|
|
|
|
| GSF 600 Bandit |
95-98 |
|
41x53x8 |
|
22-129 |
|
51153-27C20 |
|
189,00 |
|
|
|
|
| GSF 600 Bandit |
99-05 |
|
43x55x9,5/10,5 |
|
22-141 |
|
51153-19F00 |
|
185,00 |
|
|
|
|
| GSX 600F |
97-06 |
|
41x54x11 |
|
22-123 |
|
51153-12C00/08D00 |
|
189,00 |
|
|
|
|
| GSX R 600 |
97-04 |
|
45x57x11 |
|
22-128 |
|
51153-34E00 |
|
149,00 |
|
|
|
|
| RF 600R |
93 |
|
41x54x11 |
|
22-123 |
|
51153-08D00 |
|
189,00 |
|
|
|
|
| VS 600GL |
95 |
|
39x52x11 |
|
22-117 |
|
51153-19D00 |
|
125,00 |
|
|
|
|
| DL 650 |
04-07 |
|
|
|
22-122 |
|
|
|
109,00 |
|
|
|
|
| DR 650SE |
96-04 |
|
43x55x10 |
|
22-116 |
|
51153-14330 |
|
109,00 |
|
|
|
|
| GR 650 |
|
|
35x48x11 |
|
22-103 |
|
51153-34200 |
|
89,00 |
|
|
|
|
| LS 650 |
|
|
38x50x10 |
|
22-114 |
|
51153-20A00 |
|
99,00 |
|
|
|
|
| SV 650 |
03-06 |
|
41x54x11 |
|
22-123 |
|
51153-08D00 |
|
189,00 |
|
|
|
|
| SV 650S |
99-02 |
|
43x55x9,5/10,5 |
|
22-141 |
|
51153-14F00 |
|
185,00 |
|
|
|
|
| XF 650 Freewind |
|
|
43x5 x9,5/10,5 |
|
22-127 |
|
51153-04F00 |
|
125,00 |
|
|
|
|
| DR 750S Big |
88-89 |
|
41x53x10,5 |
|
22-118 |
|
51153-44B00 |
|
109,00 |
|
|
|
|
| GS 750 |
|
|
35x48x13/14,5 |
|
22-102 |
|
51153-34730 |
|
129,00 |
|
|
|
|
| GSX 750 |
|
|
35x48x11 |
|
22-103 |
|
51153-34200 |
|
89,00 |
|
|
|
|
| GSX 750EF |
84-86 |
|
37x50x11 |
|
22-119 |
|
51153-09310 |
|
109,00 |
|
|
|
|
| GSX 750ES |
83-85 |
|
37x50x11 |
|
22-119 |
|
51153-09310 |
|
109,00 |
|
|
|
|
| GSX 750F |
90-06 |
|
41x54x11 |
|
22-123 |
|
51153-12C00708D00 |
|
189,00 |
|
|
|
|
| GSX R 750 |
87 |
|
41x53x10,5 |
|
22-118 |
|
51153-05A00 |
|
109,00 |
|
|
|
|
| GSX R 750 |
88-89 |
|
43x54x11 |
|
22-122 |
|
51153-17C00 |
|
109,00 |
|
|
|
|
| GSX R 750 |
90-93 |
|
41x54x11 |
|
22-123 |
|
51153-08D00 |
|
189,00 |
|
|
|
|
| GSX R 750 |
94-03 |
|
43x54x11 |
|
22-122 |
|
51153-17C00 |
|
109,00 |
|
|
|
|
| GT 750 |
|
|
35x48x13/14,5 |
|
22-102 |
|
51153-34730 |
|
129,00 |
|
|
|
|
| VS 750GL |
85-87 |
|
37x50x11 |
|
22-119 |
|
51153-09310 |
|
109,00 |
|
|
|
|
| DR 800S |
--94 |
|
41x53x10,5 |
|
22-118 |
|
51153-44B00 |
|
109,00 |
|
|
|
|
| DR 800S |
96 |
|
43x55x10 |
|
22-116 |
|
51153-14330 |
|
109,00 |
|
|
|
|
| VL 800 |
01-06 |
|
41x54x11 |
|
22-123 |
|
51153-08D00 |
|
189,00 |
|
|
|
|
| VS 800GL |
|
|
39x52x11 |
|
22-117 |
|
51153-19D00 |
|
125,00 |
|
|
|
|
| VX 800 |
|
|
41x53x8/9,5 |
|
22-125 |
|
51153-06C00/28C00 |
|
115,00 |
|
|
|
|
| VZ 800 Marauder |
97-04 |
|
41x53x8 |
|
22-129 |
|
51153-27C20 |
|
189,00 |
|
|
|
|
| VZ 800 |
05-07 |
|
|
|
22-123 |
|
|
|
189,00 |
|
|
|
|
| GS 850 |
|
|
37x49/49,4x8/9,5 |
|
22-112 |
|
51153-49000 |
|
115,00 |
|
|
|
|
| XN 85 Turbo |
|
|
37x50x11 |
|
22-119 |
|
|
|
109,00 |
|
|
|
|
| RF 900R |
|
|
43x54x11 |
|
22-122 |
|
51153+14D00 |
|
109,00 |
|
|
|
|
| GS 1000 |
|
|
37x49/49,4x8/9,5 |
|
22-112 |
|
51153-49000 |
|
115,00 |
|
|
|
|
| GS 1000G |
|
|
37x49/49,4x8/9,5 |
|
22-112 |
|
51153-49000 |
|
115,00 |
|
|
|
|
| GSX R 1000 |
01-06 |
|
43x55x9,5/10 |
|
22-127 |
|
51153-40F00 |
|
125,00 |
|
|
|
|
| SV 1000 |
03-04 |
|
46x58x10,5 |
|
22-139 |
|
51153-42F00 |
|
169,00 |
|
|
|
|
| TL 1000R |
98-03 |
|
43x55x9,5/10 |
|
22-127 |
|
51153-46E20 |
|
125,00 |
|
|
|
|
| TL 1000S |
97-01 |
|
41x53x8/10,5 |
|
22-140 |
|
51153-02FAO |
|
125,00 |
|
|
|
|
| V-STROM 1000 |
02-06 |
|
43x54x11 |
|
22-122 |
|
51153-49000 |
|
109,00 |
|
|
|
|
| GS 1100G |
|
|
37x49/49,4x8/9,5 |
|
22-112 |
|
51153-49000 |
|
115,00 |
|
|
|
|
| GSX 1100 |
|
|
37x49/49,4x8/9,5 |
|
22-112 |
|
51153-49000 |
|
115,00 |
|
|
|
|
| GSX 1100 |
90 |
|
41x54x11 |
|
22-123 |
|
51153-12C00 |
|
189,00 |
|
|
|
|
| GSX 1100F |
|
|
41x54x11 |
|
22-123 |
|
51153-12C00 |
|
189,00 |
|
|
|
|
| GSX 1100G |
91 |
|
43x55x10 |
|
22-116 |
|
51153-40C00 |
|
109,00 |
|
|
|
|
| GSX 1100R |
|
|
41x53x10,5 |
|
22-118 |
|
51153-05A00 |
|
109,00 |
|
|
|
|
| GSX R 1100 |
89 |
|
43x55x10 |
|
22-116 |
|
51153-40C00 |
|
109,00 |
|
|
|
|
| GSX R 1100 |
96 |
|
43x55x9,5/10 |
|
22-127 |
|
51153-46E20 |
|
125,00 |
|
|
|
|
| GSX R 1100W |
90-95 |
|
41x53x8/9,5 |
|
22-125 |
|
51153-08D00/28C00 |
|
115,00 |
|
|
|
|
| GSF 1200S |
96-02 |
|
43x54x11 |
|
22-122 |
|
51153-14D00 |
|
109,00 |
|
|
|
|
| GXS 1300R Hayabusa |
99-06 |
|
41x53x8/10,5 |
|
22-127 |
|
51153-02FAO |
|
125,00 |
|
|
|
|
| GSX 1400 |
01-06 |
|
46x58x10,5 |
|
22-139 |
|
51153-42F00 |
|
169,00 |
|
|
|
|
| GV 1400 |
|
|
41x53x10,5 |
|
22-118 |
|
51153-05A00 |
|
109,00 |
|
|
|
|
| VS 1400 |
|
|
41x54x11 |
|
22-123 |
|
51153-12C00/08D00 |
|
189,00 |
|
|
|
|
| VS 1400GL |
|
|
41x54x11 |
|
22-123 |
|
51153-08D00 |
|
189,00 |
|
|
|
|
| VL 1500 |
98-04 |
|
41x54x11 |
|
22-123 |
|
51153-08D00 |
|
189,00 |
|
|
|
|
| VZ1600 |
04-05 |
|
|
|
22-127 |
|
|
|
125,00 |
|
|
|
| |
|
各钟前叉油封规格(下) |
| YAMAHA |
| Modell |
|
|
Dim. |
|
Artikelnr |
|
Orig.nr |
|
Kr |
|
|
|
|
| YZ 80 |
82-83 |
|
33x45x10 |
|
22-131 |
|
22W-23145-00 |
|
179,00 |
|
|
|
|
| YZ 80 |
93-00 |
|
36x48x9 |
|
22-120 |
|
4ES-23145-00 |
|
115,00 |
|
|
|
|
| YZ 85 |
02-04 |
|
36x48x9 |
|
22-120 |
|
4ES-23145-00 |
|
115,00 |
|
|
|
|
| DT 125 |
86-87 |
|
36x48x10,5 |
|
22-100 |
|
IK7-23145-00 |
|
109,00 |
|
|
|
|
| DT 125 LC |
82-83 |
|
35x48x11 |
|
22-103 |
|
29L-23145-00 |
|
89,00 |
|
|
|
|
| DT 125 MX |
78-80 |
|
31x43x12,5 |
|
22-107 |
|
2A6-23145-00 |
|
99,00 |
|
|
|
|
| DT 125R |
|
|
41x53x10,5 |
|
22-118 |
|
3BN-23145-00 |
|
109,00 |
|
|
|
|
| RD 125 |
|
|
30x42x10,5 |
|
22-110 |
|
|
|
99,00 |
|
|
|
|
| TDR 125 |
|
|
38x50x10 |
|
22-114 |
|
3EN-23145-00 |
|
99,00 |
|
|
|
|
| XV 125 |
97-03 |
|
33x45x10 |
|
22-131 |
|
51Y-23145-00 |
|
179,00 |
|
|
|
|
| YZ 125 |
77-80 |
|
36x48x10,5 |
|
22-100 |
|
IK7-23145-00 |
|
109,00 |
|
|
|
|
| YZ 125 |
83-88 |
|
43x55x10 |
|
22-116 |
|
23X72VM-23145-LO |
|
109,00 |
|
|
|
|
| YZ 125 |
89-90 |
|
41x53x8/9,5 |
|
22-125 |
|
3JD/3SP-23145-LO |
|
115,00 |
|
|
|
|
| YZ 125 |
91-95 |
|
43x55x10 |
|
22-116 |
|
23X72VM-23145-LO |
|
109,00 |
|
|
|
|
| YZ 125 |
96-03 |
|
46x58x9,5/11 |
|
22-160 |
|
4SS-23145-LO |
|
198,00 |
|
|
|
|
| YZ 125 |
04 |
|
48x58x8,5/10,5 |
|
22-146 |
|
|
|
159,00 |
|
|
|
|
| RD 250 |
|
|
33x45x10 |
|
22-131 |
|
51Y-23145-00 |
|
179,00 |
|
|
|
|
| RD 250 |
--77 |
|
34x46x11 |
|
22-101 |
|
278-23145-00 |
|
109,00 |
|
|
|
|
| RD 250 LC |
|
|
32x43x12,5 |
|
22-113 |
|
4LO-W2312-00 |
|
99,00 |
|
|
|
|
| WR 250 |
|
|
43x55x10 |
|
22-116 |
|
3WJ-23145-LO |
|
109,00 |
|
|
|
|
| XV 250S |
|
|
33x45x10 |
|
22-131 |
|
51Y-23145-00 |
|
179,00 |
|
|
|
|
| YZ 250 |
83-88 |
|
43x55x10 |
|
22-116 |
|
23X72VM-23145-LO |
|
109,00 |
|
|
|
|
| YZ 250 |
89-90 |
|
41x53x8/9,5 |
|
22-125 |
|
3DJ/3SP-23145-LO |
|
115,00 |
|
|
|
|
| YZ 250 |
91-95 |
|
43x55x10 |
|
22-116 |
|
23X72VM-23145-LO |
|
109,00 |
|
|
|
|
| YZ 250 |
96-03 |
|
46x58x9,5/11 |
|
22-160 |
|
4SS-23145-LO |
|
198,00 |
|
|
|
|
| YZ 250F |
04 |
|
48x58x8,5/10,5 |
|
22-146 |
|
|
|
159,00 |
|
|
|
|
| RD 350 |
--77 |
|
34x46x11 |
|
22-101 |
|
278-23145-00 |
|
109,00 |
|
|
|
|
| RD 350 |
83 |
|
35x48x11 |
|
22-103 |
|
29L-23145-00 |
|
89,00 |
|
|
|
|
| XT 350 |
85-92 |
|
36x48x10,5 |
|
22-100 |
|
|
|
109,00 |
|
|
|
|
| WR 400F |
|
|
46x58x9,5/11 |
|
22-160 |
|
|
|
198,00 |
|
|
|
|
| XJ 400 |
|
|
|
|
22-134 |
|
29L-23145-00 |
|
99,00 |
|
|
|
|
| XS 400 Seca |
|
|
35x48x11 |
|
22-103 |
|
29L-23145-00 |
|
89,00 |
|
|
|
|
| XS 400SE |
|
|
33x46x10,5 |
|
22-104 |
|
1L9-23145-00 |
|
89,00 |
|
|
|
|
| YZ 400F |
|
|
46x58x9,5/11 |
|
22-160 |
|
5ET-23145-00 |
|
198,00 |
|
&, ;nbs, p; |
|
|
| WR 426F |
|
|
46x58x9,5/11 |
|
22-160 |
|
|
|
198,00 |
|
|
|
|
| YZ 426F |
|
|
46x58x9,5/11 |
|
22-160 |
|
|
|
198,00 |
|
|
|
|
| YZ 450F |
04 |
|
48x58x8,5/10,5 |
|
22-146 |
|
|
|
159,00 |
|
|
|
|
| YZ 490 |
|
|
43x55x10 |
|
22-116 |
|
23X-23145-10 |
|
109,00 |
|
|
|
|
| TT 500 |
|
|
36x48x10,5 |
|
22-100 |
|
IK7-23145-00 |
|
109,00 |
|
|
|
|
| TX 500 |
|
|
34x46x11 |
|
22-101 |
|
278-23145-00 |
|
109,00 |
|
|
|
|
| XJ 500 |
|
|
|
|
22-134 |
|
29L-23145-00 |
|
99,00 |
|
|
|
|
| XT 500 |
|
|
36x48x10,5 |
|
22-100 |
|
IK7-23145-00 |
|
109,00 |
|
|
|
|
| XV 535 Virago |
|
|
36x48x9 |
|
22-120 |
|
2AJ-23145-00 |
|
115,00 |
|
|
|
|
| XJ 550 |
|
|
|
|
22-134 |
|
29L-23145-00 |
|
99,00 |
|
|
|
|
| XT 550 |
|
|
38x50x10 |
|
22-114 |
|
|
|
99,00 |
|
|
|
|
| FZ6-N |
04-05 |
|
|
|
22-116 |
|
5VX-23145-00 |
|
109,00 |
|
|
|
|
| FZ6NS |
05 |
|
|
|
22-116 |
|
5VX-23145-00 |
|
109,00 |
|
|
|
|
| FZR 600 |
--93 |
|
38x50x10 |
|
22-114 |
|
3EN-23145-00 |
|
99,00 |
|
|
|
|
| FZR 600R |
94-95 |
|
41x53x8/10,5 |
|
22-132 |
|
3SP-231458-LO |
|
125,00 |
|
|
|
|
| FZS 600 Fazer |
99-03 |
|
41x53x8/10,5 |
|
22-140 |
|
4EB-23145-00 |
|
125,00 |
|
|
|
|
| TT 600 |
--91 |
|
43x55x10 |
|
22-116 |
|
3XJ-23145-00 |
|
109,00 |
|
|
|
|
| TT 600E |
96-97 |
|
43x55x10 |
|
22-116 |
|
4DA-23145-LO |
|
109,00 |
|
|
|
|
| TT 600R |
99-00 |
|
47x58x10 |
|
22-142 |
|
5CH-F3145-00 |
|
169,00 |
|
|
|
|
| XJ 600 |
|
|
36x48x9 |
|
22-120 |
|
49A/15R-23145-00 |
|
115,00 |
|
|
|
|
| XJ 600 Div. Naked |
--98 |
|
38x50x10 |
|
22-114 |
|
3EN-23145-00 |
|
99,00 |
|
|
|
|
| XJ 600S Diversion |
99-03 |
|
41x53x8/10,5 |
|
22-140 |
|
4EB-23145-00 |
|
125,00 |
|
|
|
|
| XT 600 |
|
|
41x53x10,5 |
|
22-118 |
|
43F-23145-10 |
|
109,00 |
|
|
|
|
| XT 600E |
90-03 |
|
41x53x10,5 |
|
22-118 |
|
3BN-23145-100 |
|
109,00 |
|
|
|
|
| XT 600K |
|
|
41x53x10,5 |
|
22-118 |
|
43F-23145-10 |
|
109,00 |
|
|
|
|
| XT 600Z Teneré |
|
|
41x54x11 |
|
22-123 |
|
ILN-23145-00 |
|
189,00 |
|
|
|
|
| YZF 600R |
96-03 |
|
41x53x8/10,5 |
|
22-132 |
|
3SP-23145-LO |
|
125,00 |
|
|
|
|
| YZF R6 |
99-04 |
|
43x55x9,5/10,5 |
|
22-141 |
|
4PU-23145-00 |
|
185,00 |
|
|
|
|
| XJ 650 |
|
|
36x48x9 |
|
22-120 |
|
15R-23145-00 |
|
115,00 |
|
|
|
|
| XS 650 |
|
|
34x46x11 |
|
22-101 |
|
278-23145-00 |
|
109,00 |
|
|
|
|
| XVS 650 Drag Star |
|
|
41x53x8/10,5 |
|
22-132 |
|
|
|
125,00 |
|
|
|
|
| XVS 650 Drag Star Classic |
97-99 |
|
41x53x8/10,5 |
|
22-132 |
|
3SP-23145-LO |
|
125,00 |
|
|
|
|
| XVS 650 Drag Star Classic |
00-04 |
|
41x53x8/10,5 |
|
22-140 |
|
4EB-23145-00 |
|
125,00 |
|
|
|
|
| SZR 660R |
96-97 |
|
41x53x10,5 |
|
22-118 |
|
3NC-F3145-00 |
|
109,00 |
|
|
|
|
| XTZ 660 |
|
|
43x55x10 |
|
22-116 |
|
23X-23145-LO |
|
109,00 |
|
|
|
|
| FZ 750 |
|
|
34x51x8 |
|
22-130 |
|
|
|
125,00 |
|
|
|
|
| XJ 750 Seca |
|
|
36x48x9 |
|
22-120 |
|
15R-23145-00 |
|
115,00 |
|
|
|
|
| XS 750 |
|
|
36x48x10,5 |
|
22-100 |
|
IK7-23145-00 |
|
109,00 |
|
|
|
|
| XTZ 750 Teneré |
|
|
43x55x10 |
|
22-116 |
|
23X-23145-LO |
|
109,00 |
|
|
|
|
| XV 750 Virago |
|
|
38x50x10 |
|
22-114 |
|
3EN-23145-00 |
|
99,00 |
|
|
|
|
| YZF 750R |
--94 |
|
41x53x8/10,5 |
|
22-132 |
|
3SP-23145-LO |
|
125,00 |
|
|
|
|
| YZF 750R |
95 |
|
41x53x8 |
|
22-129 |
|
4FM-23145-40 |
|
189,00 |
|
|
|
|
| YZF 750SP |
94 |
|
41x53x8/10,5 |
|
22-132 |
|
3SP-23145-LO |
|
125,00 |
|
|
|
|
| TDM 850 |
-95 |
|
41x53x8/10,5 |
|
22-132 |
|
3SP-23145-LO |
|
125,00 |
|
|
|
|
| TDM 850 |
96- |
|
43x55x10 |
|
22-116 |
|
3GM-23145-AO/4TX |
|
109,00 |
|
|
|
|
| TRX 850 |
96 |
|
41x53x8/10,5 |
|
22-132 |
|
3SP-23145-LO |
|
125,00 |
|
|
|
|
| XS 850 |
|
|
36x48x10,5 |
|
22-100 |
|
IK7-23145-00 |
|
109,00 |
|
|
|
|
| TDM 900 |
02-05 |
|
43x55x9,5/10,5 |
|
22-141 |
|
4PU-23145-00 |
|
185,00 |
|
|
|
|
| XJ 900 |
--94 |
|
37x49/49,4x8/9,5 |
|
22-112 |
|
41Y-23145-01 |
|
115,00 |
|
|
|
|
| XJ 900S Div. |
95-- |
|
41x53x8/10,5 |
|
22-132 |
|
3SP-23145-LO |
|
125,00 |
|
|
|
|
| MT01 |
05 |
|
|
|
22-116 |
|
5VX-23145-00 |
|
109,00 |
|
|
|
|
| FZ1 |
06 |
|
|
|
22-141 |
|
4PU-23145-00 |
|
185,00 |
|
|
|
|
| FZR 1000 |
--88 |
|
41x53x10,5 |
|
22-118 |
|
36Y-23145-00 |
|
109,00 |
|
|
|
|
| FZR 1000 |
--90 |
|
43x55x10 |
|
22-116 |
|
4TX/3GM 23145-00 |
|
109,00 |
|
|
|
|
| FZR 1000 |
91-93 |
|
41x53x8/9,5 |
|
22-125 |
|
3LC-23145-00 |
|
115,00 |
|
|
|
|
| FZR 1000 |
94-95 |
|
43x55x10 |
|
22-116 |
|
4TX/3GM 23145-00 |
|
109,00 |
|
|
|
|
| FZS 1000 |
01-03 |
|
43x55x10 |
|
22-116 |
|
5VX-23145-00 |
|
109,00 |
|
|
|
|
| TR1 |
|
|
37x49/49,4x8/9,5 |
|
22-112 |
|
4Y1-23145-01 |
|
115,00 |
|
|
|
|
| XV 1000 |
|
|
37x49/49,4x8/9,5 |
|
22-112 |
|
2H7-23145-01 |
|
115,00 |
|
|
|
|
| YZF R1 |
-01 |
|
41x53x8/10,5 |
|
22-140 |
|
4XV-23145-00 |
|
125,00 |
|
|
|
|
| YZF R1 |
02-03 |
|
|
|
22-127 |
|
5PW-23145-00 |
|
125,00 |
|
|
|
|
| BT 1100 Bulldog |
03 |
|
43x55x9,5/10,5 |
|
|
|
|
|
|
|
|
|
|
| FJ 1100 |
--90 |
|
41x53x10,5 |
|
22-118 |
|
36Y-23145-00 |
|
109,00 |
|
|
|
|
| XJR 1100 |
|
|
37x49/49,4x8/9,5 |
|
22-112 |
|
|
|
115,00 |
|
|
|
|
| XS 1100 |
|
|
37x49/49,4x8/9,5 |
|
22-112 |
|
4YI-23145-01 |
|
115,00 |
|
|
|
|
| XV 1100 Virago |
|
|
38x50x10 |
|
22-114 |
|
3EN-23145-00 |
|
99,00 |
|
|
|
|
| XVS 1100 Dragstar |
99-00 |
|
41x53x8/10,5 |
|
22-140 |
|
4EB-23145-00 |
|
125,00 |
|
|
|
|
| XVS 1100 Dragstar Classic |
00-04 |
|
41x53x8/10,5 |
|
22-140 |
|
4EB-23145-00 |
|
125,00 |
|
|
|
|
| FJ 1200 |
--90 |
|
41x53x10,5 |
|
22-118 |
|
36Y-23145-00 |
|
109,00 |
|
|
|
|
| FJ 1200 |
91 |
|
41x53x8/9,5 |
|
22-125 |
|
3LC-23145-00 |
|
115,00 |
|
|
|
|
| V-MAX |
--92 |
|
40x52x9,5 |
 |
22-115 |
|
1NL-23145-00 |
|
115,00 |
|
|
|
|
| V-MAX |
93-95 |
|
43x55x10 |
|
22-116 |
|
3GM-23145-00 |
|
109,00 |
|
|
|
|
| V-MAX |
96 |
|
43x55x9,5/10 |
|
22-127 |
|
4KG-23145-00 |
|
125,00 |
|
|
|
|
| XJR 1200 |
95 |
|
43x55x9,5/10 |
|
22-127 |
|
4KG-23145-00 |
|
125,00 |
|
|
|
|
| XVZ 1200 |
|
|
40x52x9,5 |
|
22-115 |
|
|
|
115,00 |
|
|
|
|
| XVZ 12T |
|
|
40x52x9,5 |
|
22-115 |
|
1NL-23145-00 |
|
115,00 |
|
|
|
|
| XJR 1300 |
99-06 |
|
43x55x9,5/10,5 |
|
22-141 |
|
4PU-23145-00 |
|
185,00 |
|
|
|
|
| XVZ 1300 Royal Star |
99 |
|
43x54x11 |
|
22-122 |
|
4NK-23145-00 |
|
109,00 |
|
|
|
|
| XVZ 1300S |
99 |
|
43x54x11 |
|
22-122 |
|
4NK-23145-00 |
|
109,00 |
|
|
|
|
| XVZ 13T |
|
|
40x52x9,5 |
|
22-115 |
|
1NL-23145-00 |
|
115,00 |
|
|
|
|
| XV 1600 |
99-01 |
|
43x54x11 |
|
22-122 |
|
4NK-23145-00 |
|
109,00 |
|
|
|
|
| XV 1700 |
00 |
|
43x54x11 |
|
22-122 |
|
|
|
109,00 |
|
|
|
|
| XV 1700 |
04-05 |
|
|
|
22-127 |
|
|
|
125,00 |
|
| |
|
部分越野车的前叉油封参数 |
|
CR125 84-86 Kayaba 43x55x9.5 46-47-22-1 46-47-22-2
CR125 87-89 Showa 43x54x11 46-47-13-1 46-47-13-2
CR125 90-91 Showa 45x57x11 46-47-10-1 46-47-10-2
CR125 92-93 Showa 43x54x10 46-47-12-1 46-47-12-2
CR125 94-96 Kayaba 43x55x9.5 46-47-22-1 46-47-22-2
CR125 97- Kayaba 46x58x9.5 46-47-25-1 46-47-25-2
CR250 92-94 Showa 43x54x10 46-47-12-1 46-47-12-2
CR250 97- Showa 47x58x10 46-47-27-1 46-47-27-2
CR250 95 Kayaba 43x55x9.5 46-47-22-1 46-47-22-2
CR250 89-91 Showa 45x57x11 46-47-10-1 46-47-10-2
CR250 83-88 Showa 43x54x11 46-47-13-1 46-47-13-2
CR250 96 Kayaba 46x58x9.5 46-47-25-1 46-47-25-2
CR500 83-88 Showa 43x54x11 46-47-13-1 46-47-13-2
CR500 96- Kayaba 46x58x9.5 46-47-25-1 46-47-25-2
CR500 95 Kayaba 43x55x9.5 46-47-22-1 46-47-22-2
CR500 89-91 Showa 45x57x11 46-47-10-1 46-47-10-2
CR500 92-94 Showa 43x54x10 46-47-12-1 46-47-12-2
CR80 96-02 Showa 37x50x11 46-47-26-2
CR80 84-86 Showa 33x46x10.5 46-47-18-2
CR80 92-95 Showa 36x48x9.5 46-47-24-2
CR80 87-91 Showa 35x48x11 46-47-14-2
CR85 03- Showa 37x50x11 46-47-26-2
CRF250 04- Showa 47x58x10 46-47-27-1 46-47-27-2
CRF450 02- Showa 47x58x10 46-47-27-1 46-47-27-2
DR350 90-99 Showa 43x54x11 46-47-13-1 46-47-13-2
DR400Z 00- Showa 49x60x10 46-47-17-1 46-47-17-2
KDX200 94-96 Kayaba 41x53x8 46-47-23-1 46-47-23-2
KLX250 91-93 Kayaba 43x55x9.5 46-47-22-1 46-47-22-2
KLX250 94-96 Kayaba 43x55x9.5 46-47-22-1 46-47-22-2
KLX300 97- Kayaba 43x55x9.5 46-47-22-1 46-47-22-2
KTM EXC125-525 00- White Power 43x52.7x9.5 46-47-11-2
KTM SX125-525 00- White Power 50x60x10.5 46-47-33-2
KTM SX125-525 00- White Power 48x57.7x9.5 46-47-30-2
KTM SX65 02- Marzocchi 35x47x10 46-47-21-2
KTM SX85 03- White Power 43x52.7x9.5 46-47-11-2
KTM50-65 -01 Paioli 32x42x7 46-47-20-2
KX125/250 91-95 Kayaba 43x55x9.5 46-47-22-1 46-47-22-2
KX125/250 96-01 Kayaba 46x58x9.5 46-47-25-1 46-47-25-2
KX125/250 02- Kayaba 48x58x10 46-47-28-2
KX125/250 90 Kayaba 41x53x8 46-47-23-1 46-47-23-2
KX250F 04- Kayaba 48x58x10 46-47-28-2
KX500 97- Kayaba 46x58x9.5 46-47-25-1 46-47-25-2
KX500 90 Kayaba 41x53x8 46-47-23-1 46-47-23-2
KX500 91-96 Kayaba 43x55x9.5 46-47-22-1 46-47-22-2
KX60 83- Kayaba 30x42x10.5 46-47-16-2
KX65 00- Showa 33x46x10.5 46-47-18-2
KX80 92-97 Kayaba 38x50x10.5 46-47-29-2
KX80 86-91 Kayaba 35x48x11 46-47-14-2
KX80/85 98- Kayaba 36x48x9.5 46-47-24-2
MZ 45mm Marzocchi 45x58x11 46-47-15-2 | |
[
客服电话:
手机: 13724056250
返回商城 [摩托用品] [养护用品] [车辆附件] [机车配件] [代理落牌] [维修工具] [整车出售] [处理商品] [特供商品] [汽配用品]
